Details:

Model	BP-AV
Description	battery plate for using Gold-mount battery to power V-mount camera
Output	12V/3A,  5V/2A
Dimension	142 x 95 x 27(mm)
Weight	280g

Characteristics:

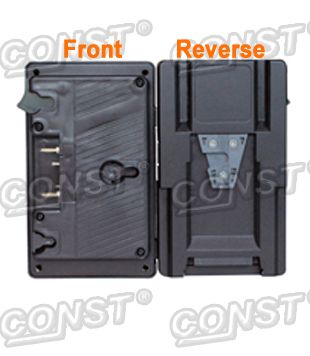

The front of BP-AV is Gold-mount side, and the reverse of BP-AV is the backside of V-mount battery. Firstly, Install Gold-mount battery on the front of BP-AV. Then, connect the reverse of BP-AV to V-mount camera directly. Finally, the Gold-mount battery can power V-mount camera successfully.

Furthermore, this model has 1pc D-Tap output socket (12V/3A) and 1pc Circular-hole socket (5V/2A). The different output will be satisfied with your different requirement.
